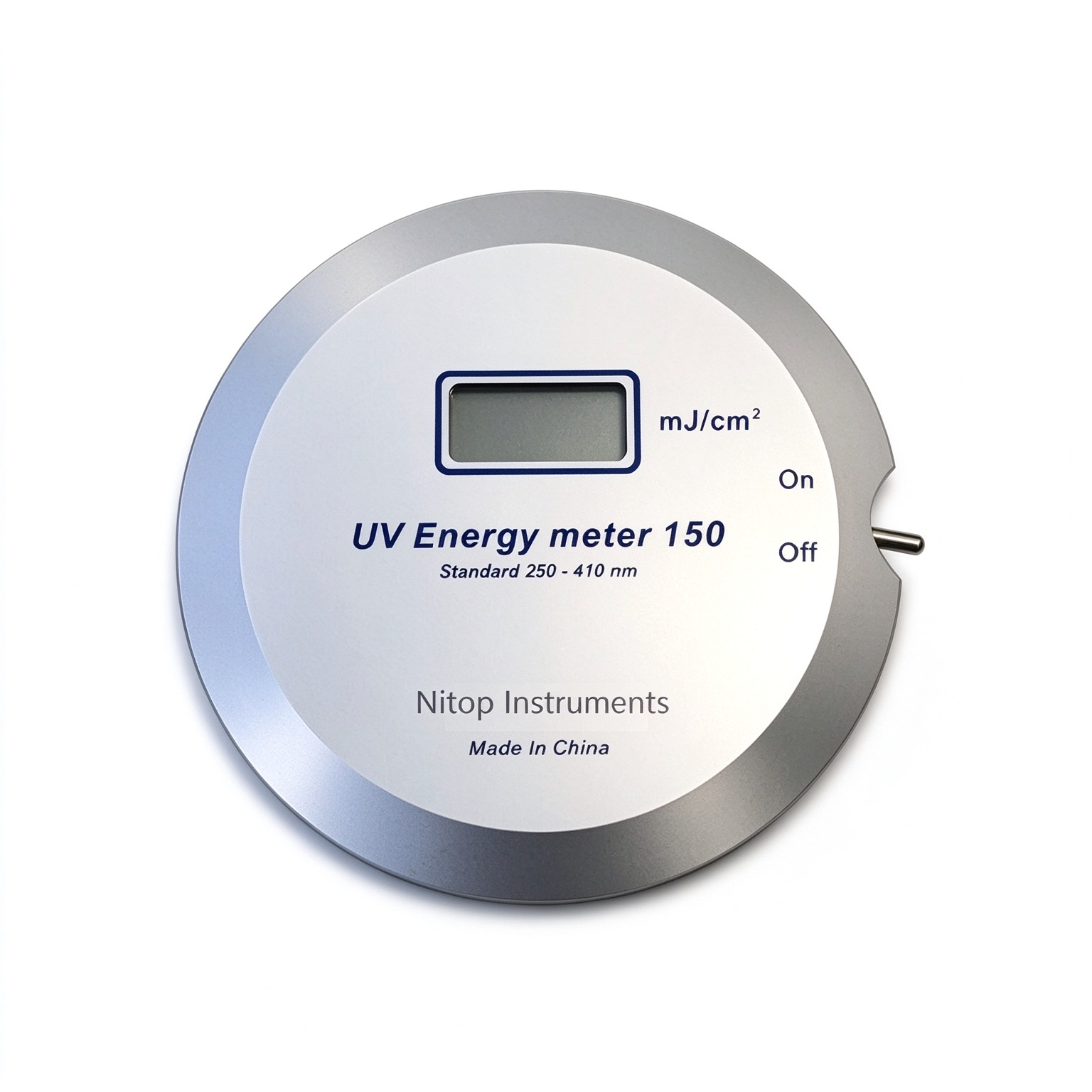

UV-Integrator

Product Overview

UV Energy Meter is a dedicated testing instrument matched with UV curing machines, including LED UV curing systems and high-pressure mercury lamp UV curing ovens. It measures UV exposure energy (mJ/cm²) and UV light intensity (mW/cm²). It monitors UV output during curing process to verify curing dose and ensure stable and consistent curing quality of UV ink, UV varnish and UV adhesive. Widely used in printing laboratories, sampling stations and production quality control, it is essential equipment for UV curing process quality management.

Working Principle

The UV energy meter is equipped with high-precision UV sensor. When UV light irradiates the sensor, optical signals are converted into electrical signals. The instrument collects and calculates signals in real time, outputs UV peak intensity and cumulative energy value to judge whether the curing energy meets requirements.

Core Features

1. Compatible with two light sources: works for 365nm high-pressure mercury lamp; optional wavelength models available for LED UV light sources (365/385/395nm).
2. Real-time display of peak UV intensity and cumulative energy, high accuracy and simple operation.
3. Compact size, can be placed directly on the conveyor belt of UV curing machine and pass through UV irradiation zone together with workpiece for inline measurement.
4. Robust housing with high temperature resistance, withstand short-time high temperature inside UV curing oven.
5. Auto power-off function for power saving, portable for R&D sample test and routine production inspection.

Applications

Printing Industry: UV energy measurement for UV ink and UV varnish curing;

Coating & Adhesive Industry: Process verification for UV coating and UV adhesive curing;

Laboratory: Ink formulation research. Used with UV curing machine and ink rub tester to complete full workflow: UV sample preparation and ink layer rub resistance test;

Electronics Industry: UV curing process monitoring for electronic components.
